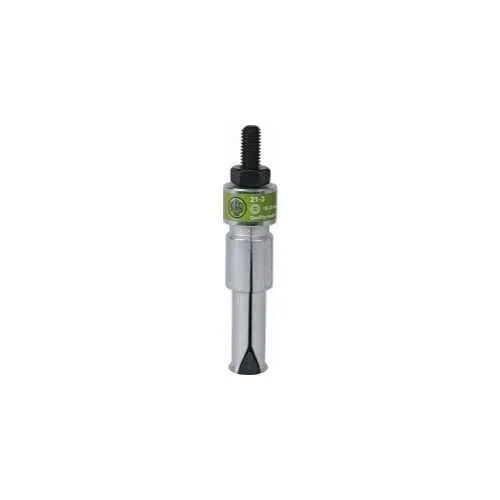

21-3 Kukko Internal Extractor

Description

For extracting inner bearings, bearing outer rings and bushings. For extracting inner bearings, bearing outer rings and bushings.  Product Data Sheet Description The 2-shell design with extra large grasp edges ensures safe extraction. The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading. Mechanical pressure screw. Advantage KUKKO internal extractors can be combined with counter supports (22-1 or 22-2)) and slide hammer (22-0). When combined with the internal extractors, extensions from series 21-V enable deeper bearings to be extracted. Spare parts are available for internal extractor sizes 21-89 and 21-90. How it works Place the internal extractor into the bearing's hole. Using a ring spanner, tighten the nuts to open the jaws of the internal extractor. Make sure that the jaws sit securely below the bearing's inner race. For removal, the spindle on the counter support series 22 or on the slide hammer series 22-0 is screwed onto the key spindle on the internal extractor. The counter support's arms must not block the part due to be removed. For extracting inner bearings, bearing outer rings and bushings.  Product Data Sheet Description The 2-shell design with extra large grasp edges ensures safe extraction. Make sure that the arms are parallel. For removal, the spindle on the counter support series 22 or on the slide hammer series 22-0 is screwed onto the key spindle on the internal extractor.

Key Features

• The counter support's arms must not block the part due to be removed.
• Advantage KUKKO internal extractors can be combined with counter supports (22-1 or 22-2)) and slide hammer (22-0).
• For removal, the spindle on the counter support series 22 or on the slide hammer series 22-0 is screwed onto the key spindle on the internal extractor.
• The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading.
•  Product Data Sheet Description The 2-shell design with extra large grasp edges ensures safe extraction.
• For extracting inner bearings, bearing outer rings and bushings.
