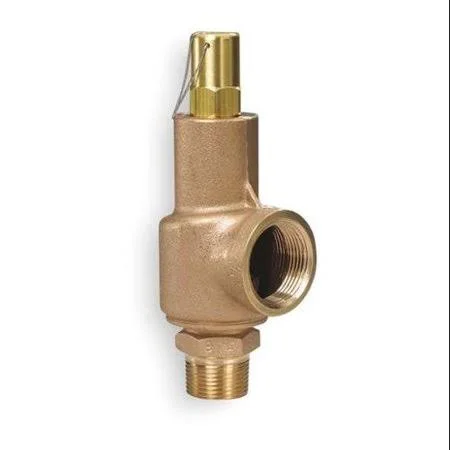

Aquatrol 89A2-15 Safety Relief Valve, 1/2 x 3/4 In, 15 PSI

Description

Technical Specification Item Safety Relief Valve Body Material Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1/2 in Outlet Size 3/4 in Factory Set Pressure 15 psi Pressure Range 0 to 300 psi Disc Material Bronze Overall Height 5 7/8. This listing is for each. Range 0 Degrees to 406 Degrees F Test Lever No Standards ASME Section VIII / CRN. Technical Specification Item Safety Relief Valve Body Material Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1/2 in Outlet Size 3/4 in Factory Set Pressure 15 psi Pressure Range 0 to 300 psi Disc Material Bronze Overall Height 5 7/8 in Application Air. Model includes sealed and closed hex cap. This AQUATROL safety relief valve features single-ring blowdown to assure quick, accurate reseating when opening/popping. For use in air compressors, pressurized production lines, and tanks.

Key Features

• Technical Specification Item Safety Relief Valve Body Material Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1/2 in Outlet Size 3/4 in Factory Set Pressure 15 psi Pressure Range 0 to 300 psi Disc Material Bronze Overall Height 5 7/8.
• This AQUATROL safety relief valve features single-ring blowdown to assure quick, accurate reseating when opening/popping.
• This listing is for each.
• Range 0 Degrees to 406 Degrees F Test Lever No Standards ASME Section VIII / CRN.
• For use in air compressors, pressurized production lines, and tanks.
• Model includes sealed and closed hex cap.
