BD Diesel 1030606-DS-12 Xtrude Double Stacked Transmission Cooler Kit

Description

The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers automatic oil temperature control. HOT transmission oil has to be COOLED to keep you on the track. Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 136% better temperature drop than BD's standard single core kit. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

Key Features

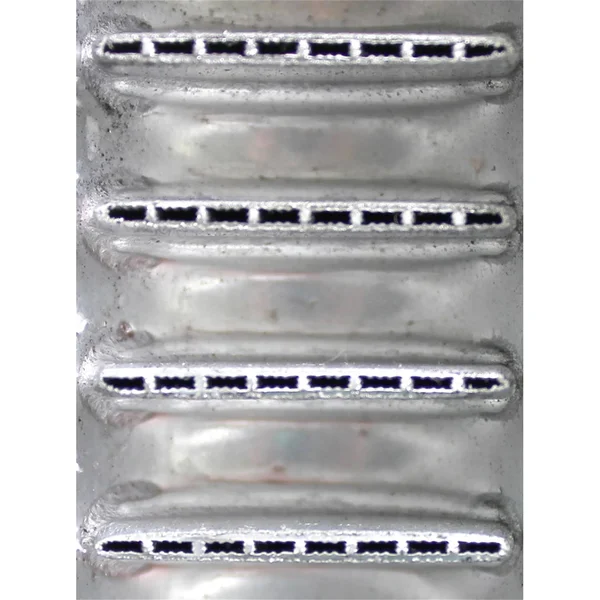

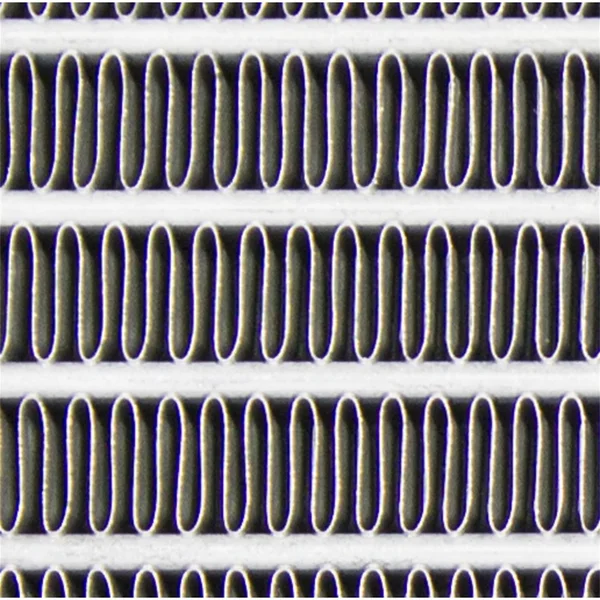

• The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.
• The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers automatic oil temperature control.
• Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure.
• HOT transmission oil has to be COOLED to keep you on the track.

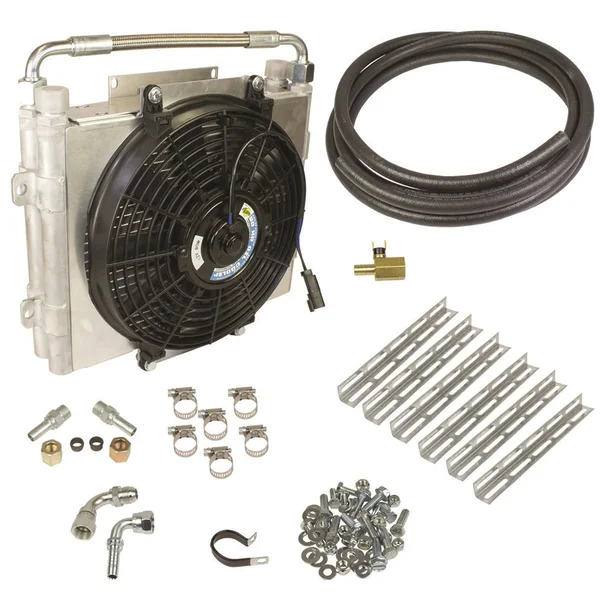

• Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal.
• Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350% temperature drop versus the factory system - 136% better temperature drop than BD's standard single core kit.
