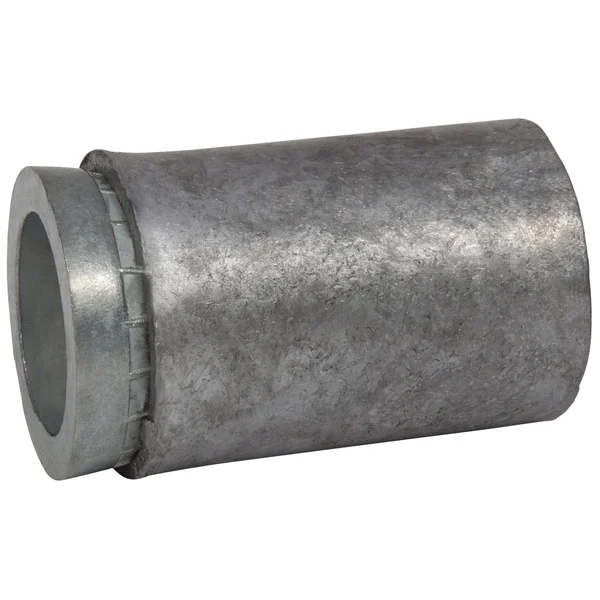

CONFAST 3/8x22 Machine Screw Anchor with 1 Setting Tool (50 per Box)

Description

The hole should be drilled with carbide tipped bit that meets ansi standards and used in a hammer drill. Applications the anchor is made from anchor body antimonial lead alloy/cone zamac alloy. Head style the anchor is a head hole diameter/bit diameter the anchor requires a 3/4in hole to be drilled in the base material concrete, block, and brick. Driver required a is required for driving the anchor into the base material. Diameter of anchor the diameter of the anchor is 3/8in. Spacing between anchors each anchor must be spaced a minimum distance of 7-1/2in from each other when measured center to center. Fixture hole diameter the hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. Length anchor the length of the anchor is 1-1/4in thread length the length of the threads on the anchor is in length. Environment the anchor is designed for use in a moist environment. Therefore, the anchor must be installed so that a minimum of 1-1/4in of the anchor is embedded into the concrete. Edge distance it is very important not to install the anchor any closer than 3-3/4in from an unsupported edge of the concrete. Minimum embedment the minimum anchor embedment into the concrete is 1-1/4in. Maximum fixture thickness the maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is. The 3/8in diameter anchor requires the hole in the fixture to be 7/8in.

Key Features

• Length anchor the length of the anchor is 1-1/4in thread length the length of the threads on the anchor is in length.
• Applications the anchor is made from anchor body antimonial lead alloy/cone zamac alloy.
• Diameter of anchor the diameter of the anchor is 3/8in.
• Minimum embedment the minimum anchor embedment into the concrete is 1-1/4in.
• Therefore, the anchor must be installed so that a minimum of 1-1/4in of the anchor is embedded into the concrete.
• Head style the anchor is a head hole diameter/bit diameter the anchor requires a 3/4in hole to be drilled in the base material concrete, block, and brick.
