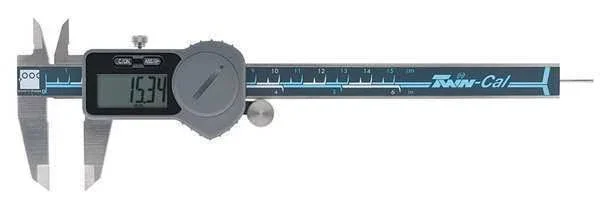

Digital Caliper, 0-6x22/0-150mm, s/s Brown & Sharpe 00590092

Description

Vernier callipers are more durable than digital callipers because they do not have internal moving parts, but they can be more difficult to read. The Brown & Sharpe 00590092 Twin-Cal IP40 series electronic callipers has a 0 to 6"/0 to 150mm measuring range with 0.0005"/0.01mm resolution and 0.001"/0.03mm accuracy for obtaining outside, inside, step, and depth dimensions for a variety of precision measurement uses. A pair of jaws attached to a long beam with a marked scale is used to take inside, outside, and step measurements. The reading is electronically generated and displayed on a digital, high-resolution screen as a single value. Digital callipers can take differential measurements, which are used to determine the difference in measurements between two objects, by zeroing the display at any point along the scale. It comes with a lithium battery and a fitted storage case. One jaw is fixed to the end of the scale, while the other jaw slides along it with gearless precision to take measurements. It has a thumb wheel slide control and a round depth rod. The LCD has 0.43" high digits and its function buttons control on/off, zero-set, inch/mm conversion, mode, and data send. An additional depth probe slides along the beam to take depth measurements. The callipers meet International Organisation for Standardisation (ISO) 13385-1 dimensional standards and it is Ingress Protection rated IP67 for protection against dust and liquids.

Key Features

• The LCD has 0.43" high digits and its function buttons control on/off, zero-set, inch/mm conversion, mode, and data send.
• The Brown & Sharpe 00590092 Twin-Cal IP40 series electronic callipers has a 0 to 6"/0 to 150mm measuring range with 0.0005"/0.01mm resolution and 0.001"/0.03mm accuracy for obtaining outside, inside, step, and depth dimensions for a.
• The stainless-steel frame and slide are durable and corrosion resistant, and the jaw faces are precision-ground for measuring accuracy.
• Digital callipers are measuring instruments commonly used for inspection in manufacturing to provide the precise measurements of an object.
• Compared to dial callipers, digital callipers provide measurements that are faster, easier, and more error-free, but they are more fragile mechanically and electronically, and do not resist coolant well.
• The data output port allows connexion to a computer with an optional TESA TLC cable (sold separately) or an optional wireless system using a TESA TLC-Twin wireless station (sold separately).
