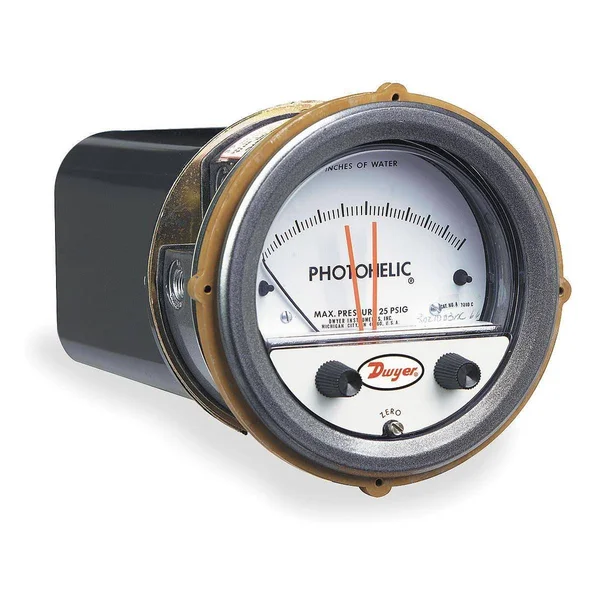

Dwyer Instruments A3050 Pressure Gauge - 0 to 50 in H2O

Description

Series A3000 Photohelic Pressure Switch/Gage, Range 0-50" w.c.3-in-1 Indicating Gage, Lo-limit and Hi-limit Control - Photohelic Switch/Gage function as versatile, highly repeatable pressure switches combined with a precise pressure gage employing the time-proven Magnehelic gage design. The Photohelic switch/gage measures and controls positive, negative or differential pressures of air and compatible gases. Standard models are rated to 25 psig (1.7 bar) with options to 35 (2.4) or 80 (5.5 bar) psig. Single pressure 36000S models measure to 6000 psig (413 bar) with a 9000 psig (620 bar) rating. Two phototransistor actuated, DPDT relays are included for low/high limit control. Easy to adjust set point indicators are controlled by knobs located on the gage face. Individual set point deadband is one pointer width - less than 1% of full scale. Set points can be interlocked to provide variable deadband - ideal for control of fans, dampers, etc. Gage reading is continuous and unaffected by switch operation, even during loss of electrical power. Photohelic Sensing - How It Works In typical applications, these Dwyer switch/gages control between high and low pressure set points. When pressure changes, reaching either set point pressure, the infrared light to the limiting phototransistor is cut off by the helix-driven light shutter. The resulting phototransistor signal is electronically amplified to actuate its DPDT slave relay and switching occurs.

Key Features

• Solid-state and integrated circuit electronics are on glass-epoxy printed circuit boards and self-extinguishing terminal boards. - Applications - Photohelic Switch/Gage In both series of pressure switch/gages, you get the convenience of a.
• Single pressure 36000S models measure to 6000 psig (413 bar) with a 9000 psig (620 bar) rating.
• Set points can be interlocked to provide variable deadband - ideal for control of fans, dampers, etc.
• The Photohelic switch/gage measures and controls positive, negative or differential pressures of air and compatible gases.
• Loss of electrical power or loss of pressure provide "fail safe" protection. - High and Low Latching Circuits Dwyer Photohelic switch/gage can be wired for high-latching, low-latching, or combination high-low latching circuits.
• Dead band between make and break is 1% of full scale or less - just enough to assure positive, chatter-free operation. - Relay-Transformer Features A plastic housing protects all electronic components.
