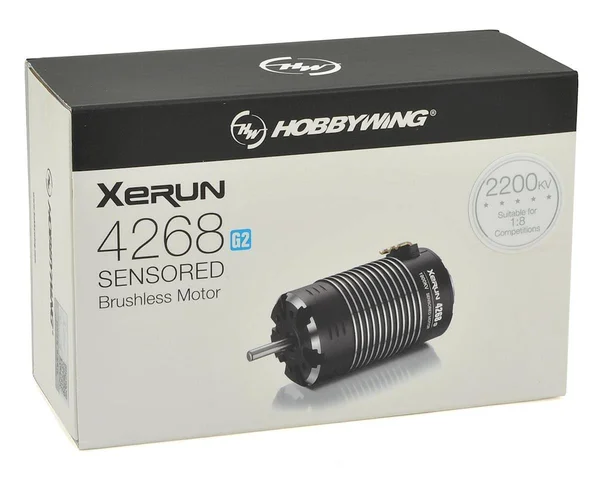

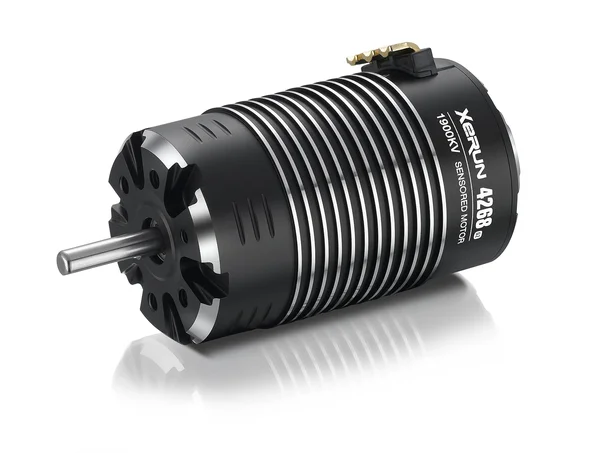

Hobbywing - Xerun 4268 SD G2 Sensored Brushless Motor (2200kV)

Description

Turbo Timing Technology When pairing this motor with HW XERUN XR8 series of ESCs, the Turbo Timing, which is widely adopted in 1/10th scale on-road racing, can be enabled and unleash the utmost power of the motor. A separate high-speed high precision encoder always output the clean signals (indicate the rotor) and not be affected by other signal interference. Features: CNC-machined aluminum ribbed heatsink case with the sensor port covered by silicon O-ring seal guarantees users the effective heat dissipation and dust prevention 4 M3 mounting holes and 2 M4 mounting holes on the front case are applicable to. Advanced Hall Sensing System The first "error-free" Hall sensing system adopted by this motor guarantees users the steady operation in the "Full-Sensored" mode. Low Cogging Torque The first motor adopted the innovative 4-pole 8-magnet "staggered pole" rotor has extremely low cogging effect and low torque pulsation (it's reduced by 85% when comparing with traditional 1/8th scale motors). Hobbywing XeRun 4268 SD G2 Sensored 1/8 Brushless Motor (2200kv) Full-Sensored Mode The first motor (in the world) with a built-in chip which helps the ESC identify it's a Hobbywing motor (when pairing with XERUN XR8/XR8 Plus) and form a. Bi-Directional Adjustable Timing The bi-directional adjustable mechanical timing, can meet the different power demands of various applications. Bi-Direction refers to CW and CCW operation of the motor.

Key Features

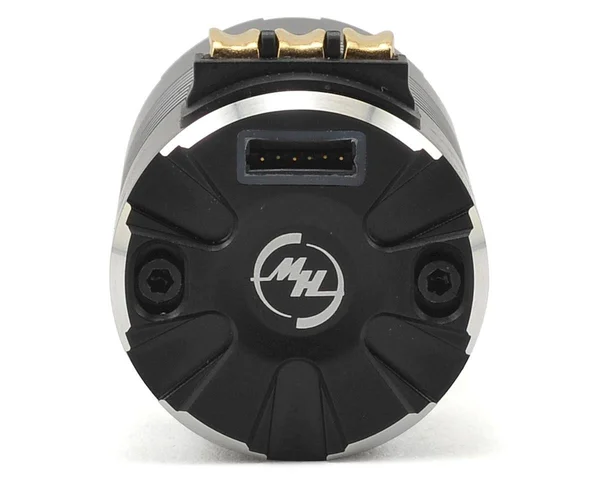

• Features: CNC-machined aluminum ribbed heatsink case with the sensor port covered by silicon O-ring seal guarantees users the effective heat dissipation and dust prevention 4 M3 mounting holes and 2 M4 mounting holes on the front case are.
• Turbo Timing Technology When pairing this motor with HW XERUN XR8 series of ESCs, the Turbo Timing, which is widely adopted in 1/10th scale on-road racing, can be enabled and unleash the utmost power of the motor.
• Hobbywing XeRun 4268 SD G2 Sensored 1/8 Brushless Motor (2200kv) Full-Sensored Mode The first motor (in the world) with a built-in chip which helps the ESC identify it's a Hobbywing motor (when pairing with XERUN XR8/XR8 Plus) and form a.
• Bi-Directional Adjustable Timing The bi-directional adjustable mechanical timing, can meet the different power demands of various applications.
• Note: this motor is also applicable to other ESCs, but it cannot work in the Sensored mode at all times.
• CNC-machined aluminum ribbed heatsink case with the sensor port covered by silicon O-ring seal guarantees users the effective heat dissipation and dust prevention 4 M3 mounting holes and 2 M4 mounting holes on the front case are applicable.
