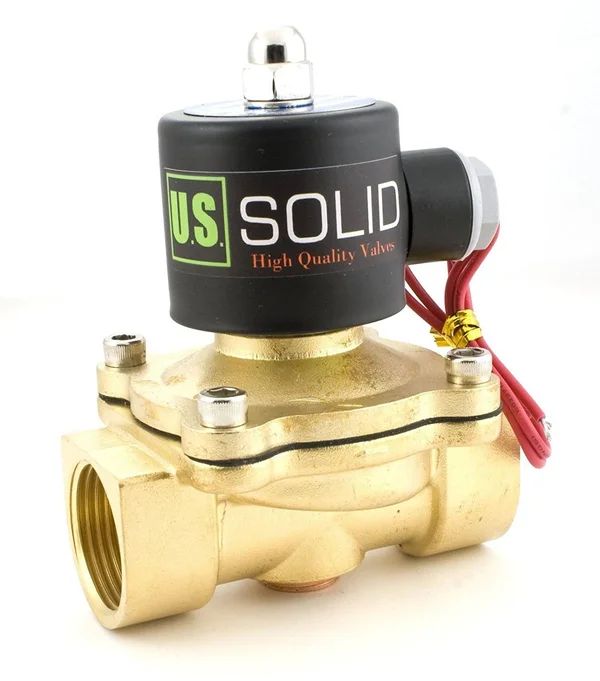

U.S. Solid 1x22 Brass Electric Solenoid Valve 24VDC Normally Closed Viton Air Water Fuel

Description

Suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel. This can lead to burnout of the coil, and malfunctioning of the valve. Operational temperature range is 14 to 248 degrees Fahrenheit; -10 to +120 degrees Celsius. Solid Normally Closed Electric Solenoid Valve; 1"ports, brass body, Viton seal, 24 volt DC, for air, water, or oil U. The direct current coil energizes at 24 volts DC; voltage range + or - 10%. Manufactured in China. 1" (25 mm) flow aperture permits a unidirectional flow capacity of 12 gallons per minute (GPM) of water at 60oFwith a pressure drop of 1 PSI (12 Cv). Semi-direct lift valve operates from 0 PSI to a maximum pressure of 145 PSI (0 MPa to 1.0 MPa). 18 Watt power rating. Quality assurance and/or conformity managed in accordance with standards: ISO 9001:2000; GB/T 19001:2000; European EN61000-6-1:2001 and EN61000-6-3:2001. Valve is not intended to be energized continuously for more than 8 hours. Suitable for outdoor use; not for use underwater. Model: USS2-00064. Operational pressure range for water: 0 to 101 PSI; for oil: 0 to 72 PSI; for air or gases: 0 to 101 PSI. Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, two-way inlet and outlet ports with one inch (1") female threaded (NPT) connections, and heat and oil resistant Viton gasket.

Key Features

• Solid Normally Closed Electric Solenoid Valve; 1"ports, brass body, Viton seal, 24 volt DC, for air, water, or oil U.
• Suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel.
• The direct current coil energizes at 24 volts DC; voltage range + or - 10%.
• Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, two-way inlet and outlet ports with one inch (1") female threaded (NPT) connections, and heat and oil resistant Viton gasket.
• 1" (25 mm) flow aperture permits a unidirectional flow capacity of 12 gallons per minute (GPM) of water at 60oFwith a pressure drop of 1 PSI (12 Cv).
• Suitable for outdoor use; not for use underwater.
