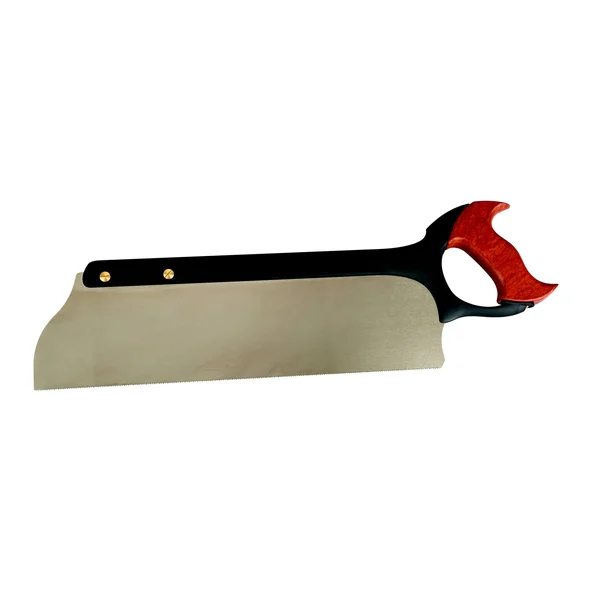

Veritas Crosscut Tenon Saw - 12 TPI - Woodcraft 05T1405

Description

The unique designs of the Veritas carcass saws and dovetail saws have proved to be extremely popular and Veritas have now introduced two superb 400mm tenon saws to complement their range. They combine the characteristics of this fine classic joinery saw with those of state-of-the-art materials and construction methods. The tooth pattern on the thin high-carbon steel blades provide a good balance between cutting action and surface finish. The design of the hardwood wooden handle has been developed to give good power transfer while still allowing a three or four finger grip for precise control. Available in crosscut and rip cut versions, the crosscut being for trimming parts to length or for use with a mitre box. The rip saw is optimised for the fast accurate cutting of tenon cheeks and similar cutting operations with the grain. The crosscut saw has 12tpi with a 15° rake and an included angle of 60°, set is 0.06720mm per side. The teeth are filed at an alternating 75° angle to the blade, which creates a 15° bevel on each tooth. The rip saw has 9tpi with a 14° rake using the typical 60° included angle, set is the same as on the crosscut saw. The tooth pattern on the thin high-carbon steel blades provide a good balance between cutting action and surface finish. The rip saw is optimised for the fast accurate cutting of tenon cheeks and similar cutting operations with the grain. The teeth are filed at an alternating 75° angle to the blade, which creates a 15° bevel on each tooth.

Key Features

• They combine the characteristics of this fine classic joinery saw with those of state-of-the-art materials and construction methods.
• The design of the hardwood wooden handle has been developed to give good power transfer while still allowing a three or four finger grip for precise control.
• The tooth pattern on the thin high-carbon steel blades provide a good balance between cutting action and surface finish.
• The crosscut saw has 12tpi with a 15° rake and an included angle of 60°, set is 0.06720mm per side.
• Available in crosscut and rip cut versions, the crosscut being for trimming parts to length or for use with a mitre box.
• The unique designs of the Veritas carcass saws and dovetail saws have proved to be extremely popular and Veritas have now introduced two superb 400mm tenon saws to complement their range.
